Description
* The application firmware is flexible and can be customized to be compatible with your existing server at special request with dedicated personnel to create the best solution for your case.
Characteristics
Cellular
Cat-12 Outdoor CPE
Features
Robust Remote Management Cloud Platform (WebGUI) with advanced IP networking options.
Connectivity
Data Speeds up to 600Mbps DL and 150Mbps UL
MIMO
4x2 MIMO
Hardware
IP67 Water-proof and Dust Proof
Power Supply
PoE 802.3af 12.95W
Additional Notes:
The application firmware is flexible and can be customized to be compatible with your existing server at special request with dedicated personnel to create the best solution for your case.
Description
* The application firmware is flexible and can be customized to be compatible with your existing server at special request with dedicated personnel to create the best solution for your case.
Characteristics
Cellular
Cat-12 Outdoor CPE
Features
Robust Remote Management Cloud Platform (WebGUI) with advanced IP networking options.
Connectivity
Data Speeds up to 600Mbps DL and 150Mbps UL
MIMO
4x2 MIMO
Hardware
IP67 Water-proof and Dust Proof
Power Supply
PoE 802.3af 12.95W
Additional Notes:
The application firmware is flexible and can be customized to be compatible with your existing server at special request with dedicated personnel to create the best solution for your case.

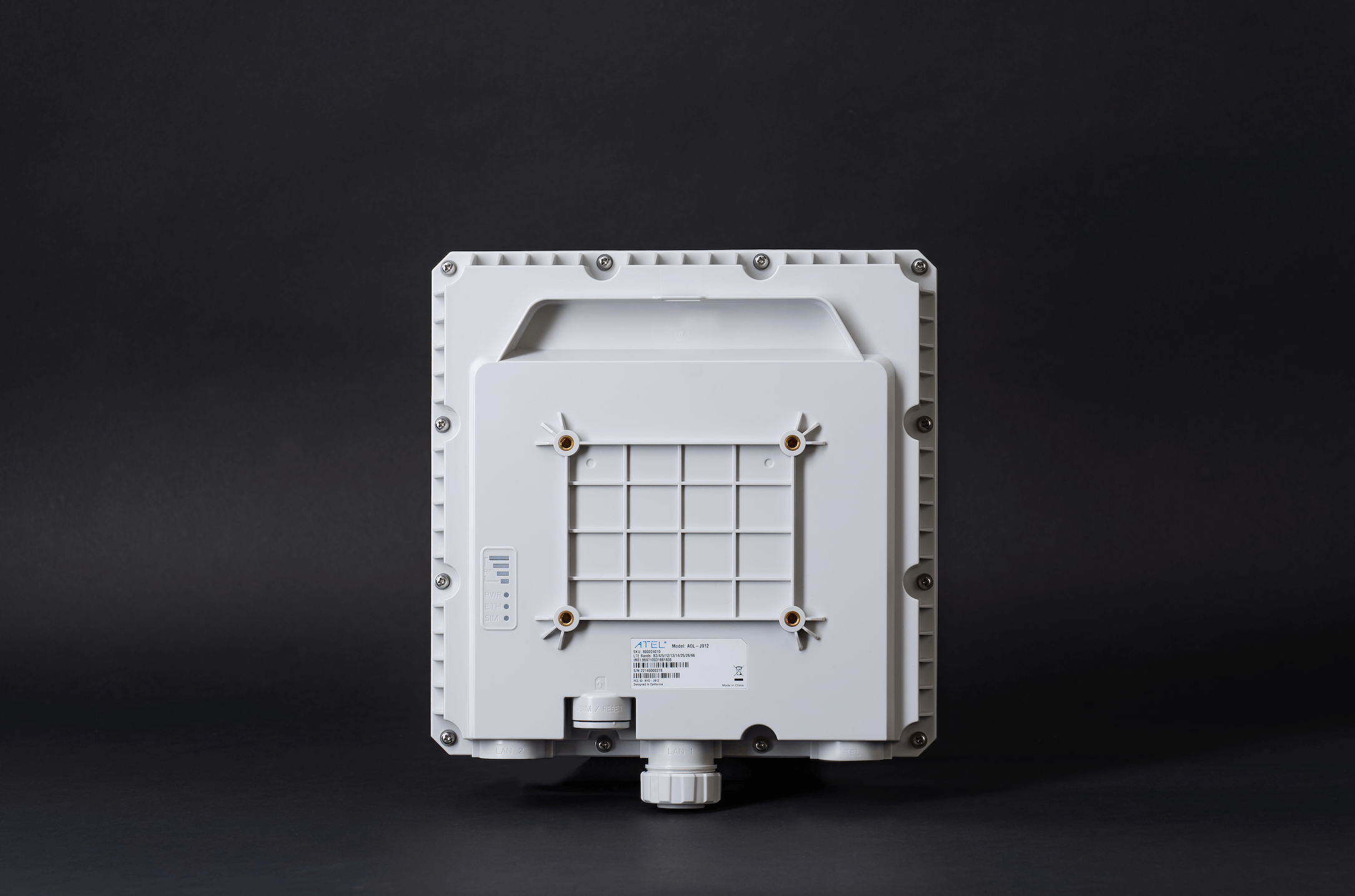

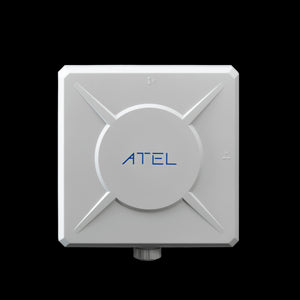

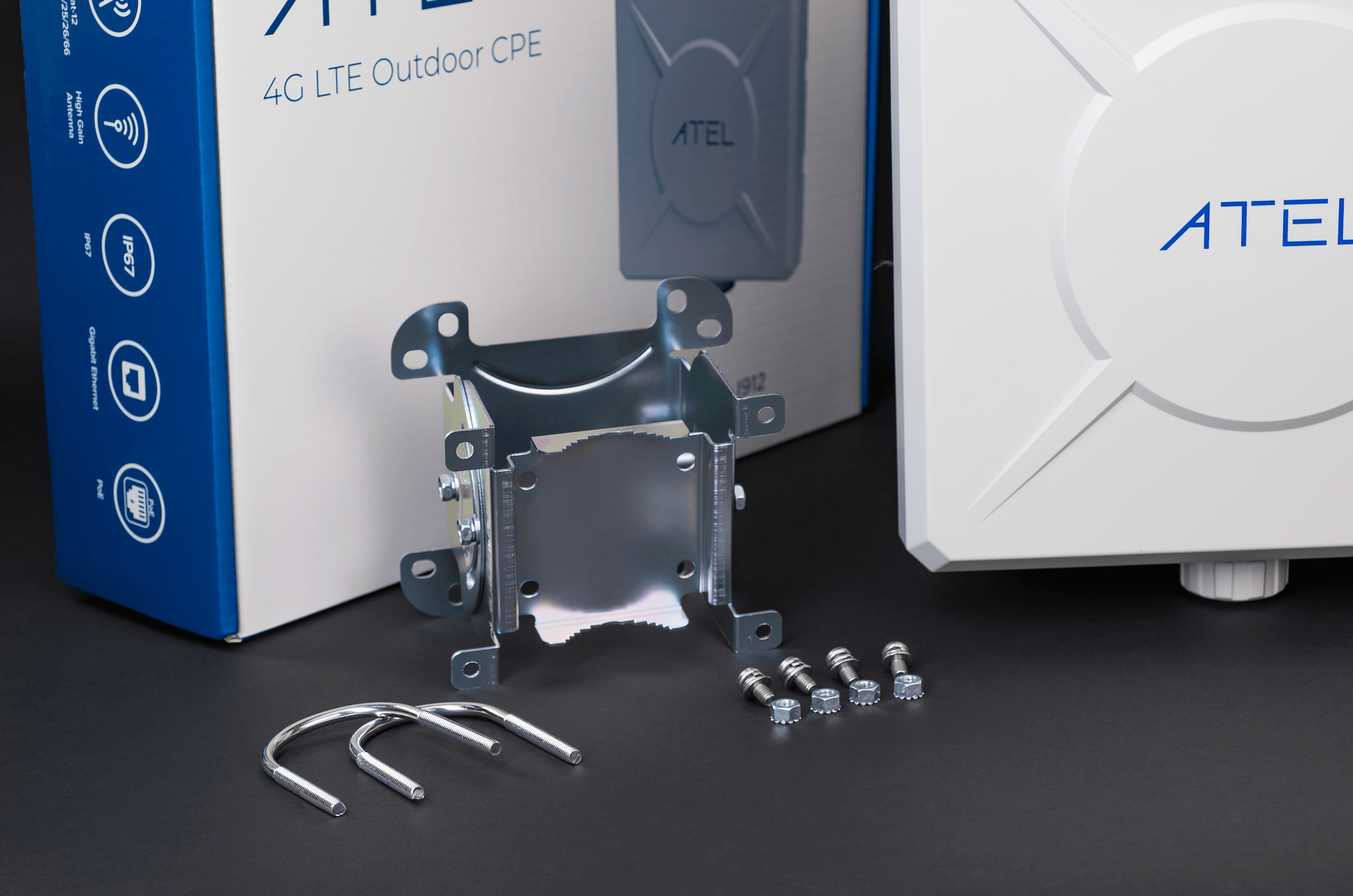

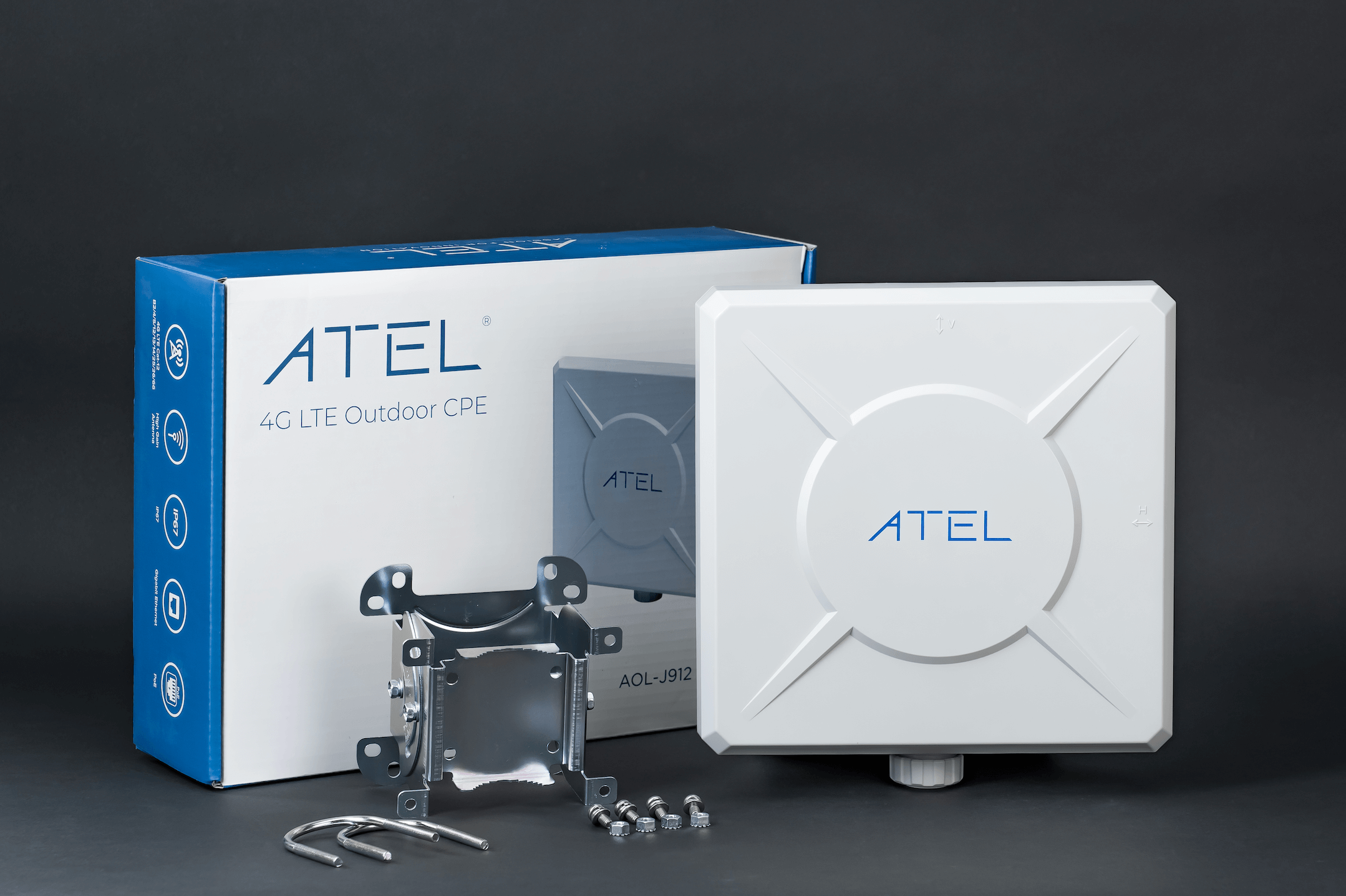

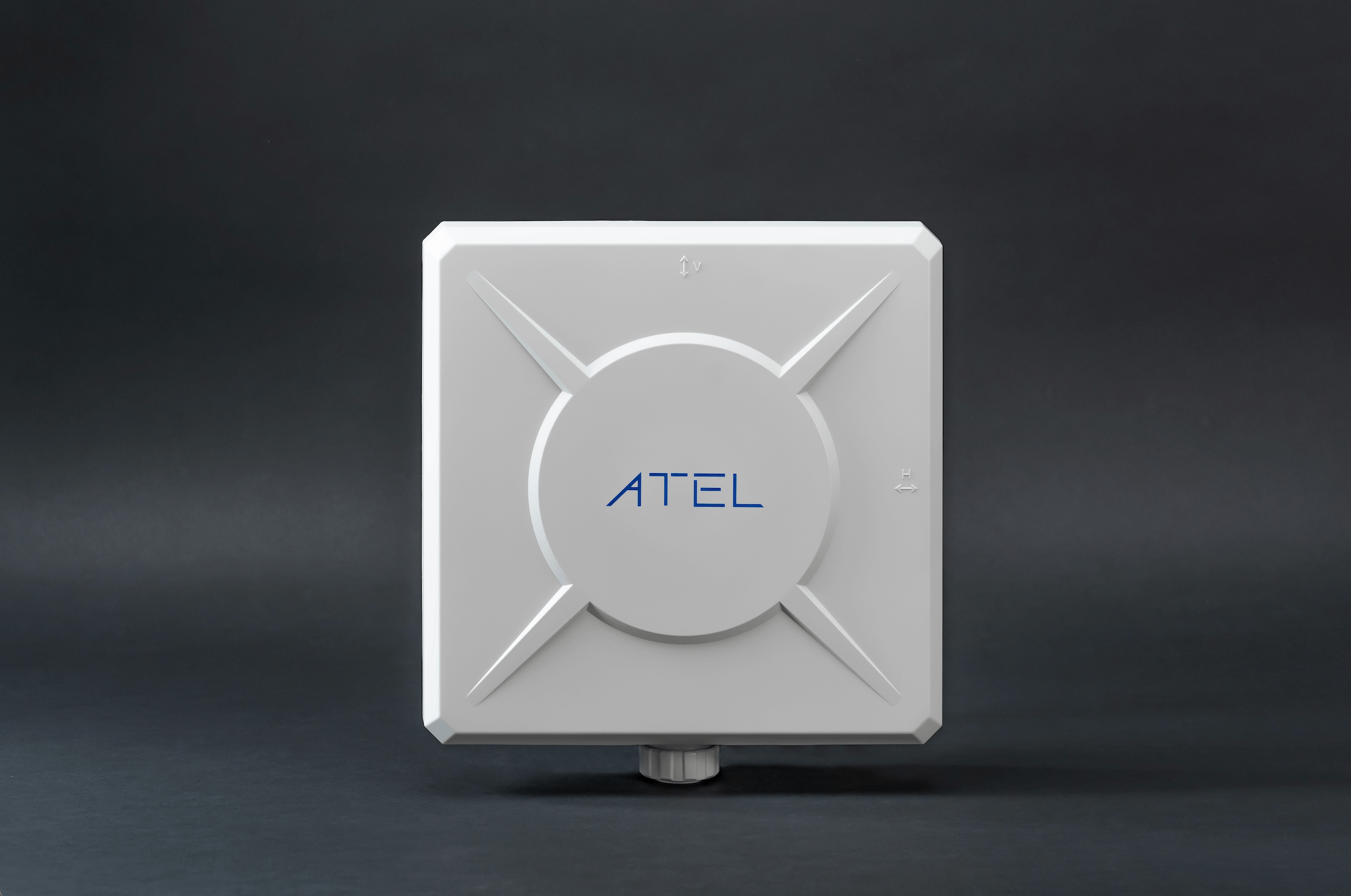

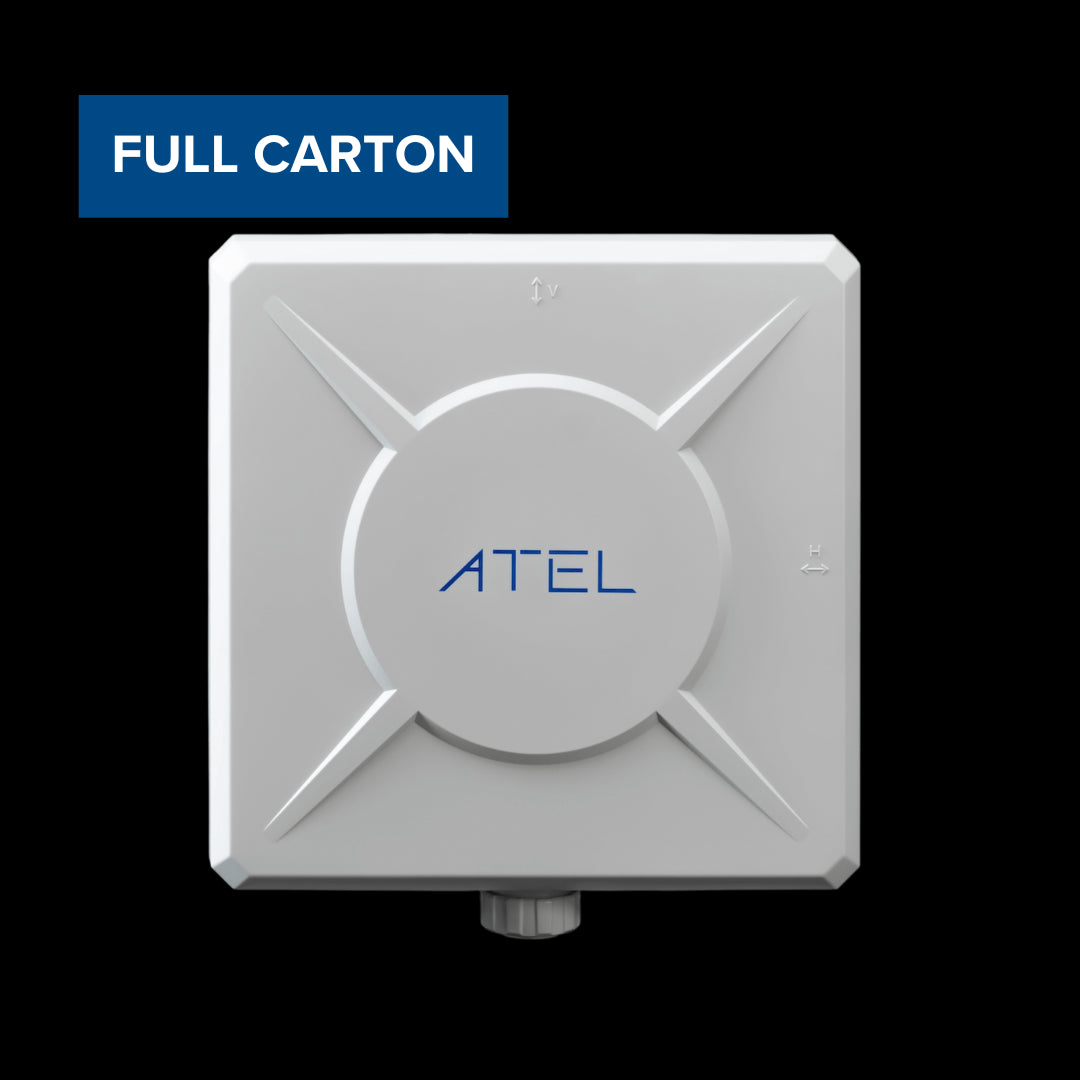

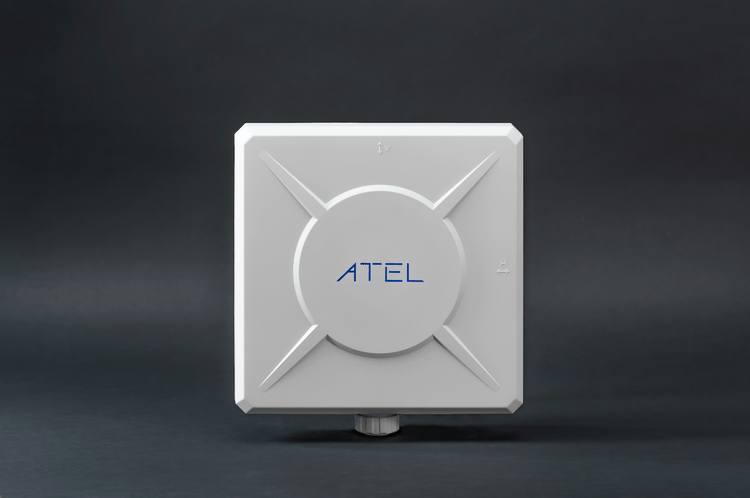

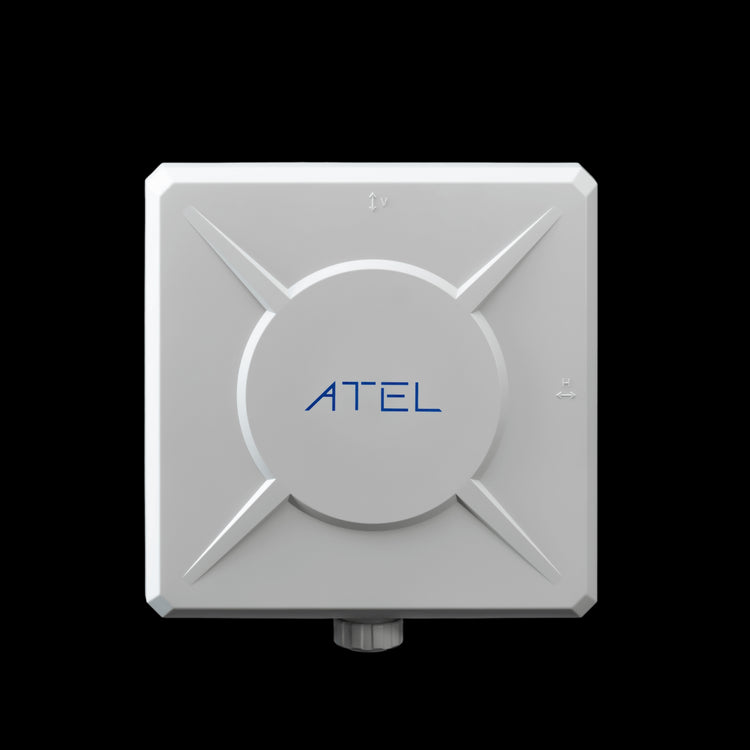

Aire Pro AOL-J912 LTE Outdoor CPE High Performance Fixed Wireless Router
Outdoor Router
by
ATEL
ATEL’s AOL-J Series of outdoor CPEs are designed to extend the network coverage at and beyond cell-edge. The Power-over-Ethernet (PoE) technology reduces the separated power cable and utilizes single standard Ethernet cables to bring data from outdoors to indoors.
- Regular price
- $499.00
- Sale price
- $499.00
- Regular price
-
Shipping calculated at checkout.
Fast & Free Shipping
Shop with confidence and have your products delivered right to your doorstep without any additional cost.
Seamless Warranty Process
If you're not completely satisfied with your purchase, reach out to us and we'll help make it right.
Quality Control & Tested
No device leaves our warehouse without inspection and testing, so you know you're receiving the best.
Available Support
Questions? Comments? Concerns? We're here to help at support@atel-usa.com
Downloadable Materials
ATEL AOL-J912 FAQs
1
What can I do if the login page does not appear?
Verify that the computer is set to obtain an IP address automatically from the Device.
• Test with http://192.168.0.1 (if default IP address not changed).
• If your ccomputer failed to obtain IP addresses from the device, you can try to set IP addresses manually.
• Verify that http://192.168.0.1 is correctly entered into the web browser and click Login.
• Use another web browser and try again or try to clear your browser history or cache memory.
• Reboot your device and try again.
• Disable and enable the active network adapter and try again.
• Try Resetting the device, refer to Troubleshooting and FAQ Q3.
• If the issue persists, kindly contact to your service provider.
2
What can I do if I cannot connect to Internet?
Check Signal LED status for receiving signal quality, refer to the LED definitions for details.
• Verify that your SIM card is installed properly and activated.
• Verify that your SIM card has sufficient credit and/or a data plan has been set up with your ISP (service provider).
• Verify that your SIM card and device is in your ISP’s service area.
• Verify that your device is connected to the network. You can login to the Online Portal (WebGUI) and check your network status on the dashboard.
• Try the diagnostic page. Login to the Online Portal (WebGUI) and perform a ping test to a known IP and web URL, such as, 8.8.8.8 or www.google.com.
• Try Resetting the device, refer to Troubleshooting and FAQ Q3.
• If the issue persists, kindly contact your service provider.
3
What can I do if I forget my web management page password?
Refer to Troubleshooting and FAQ > Q3 to restore the device to its factory default settings and then use the default Username “admin” and Password shown on the device label to login.
4
How do I insert the SIM Card?
Open the SIM Slot section (as shown below) and insert the SIM card into the slot until you hear a click. Then close it.
Note: Use a standard SIM card (2FF).
5
Looking for more details?
You can find full FAQ details here.
